OEM Pure Copper RG59 RG6 Coaxial Cable 16awg 18awg 20awg 22awg
Pure Copper Conductor Speaker Cable 16awg 18awg 20awg 22awg Audio Speaker Cables Wire

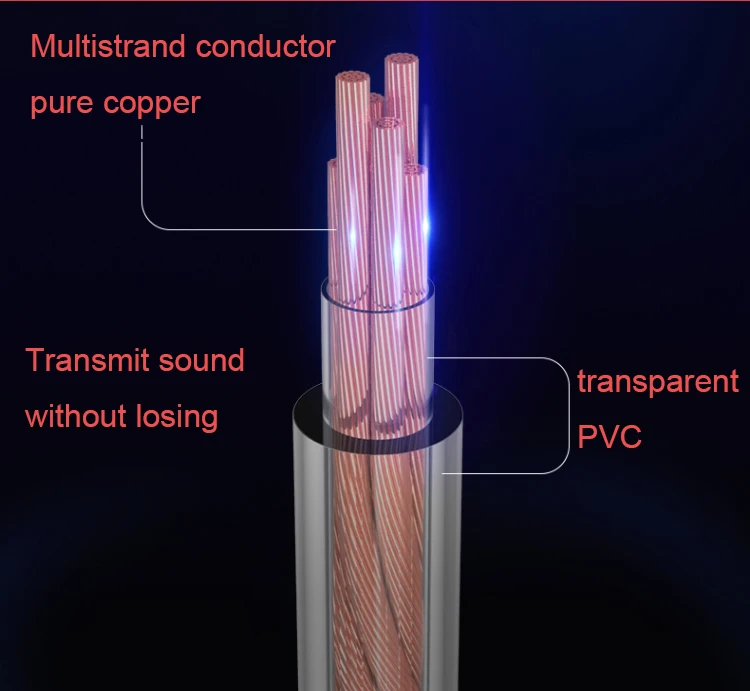

Aixton twin parallel type Speaker cables are manufactured with multi wire, bright annealed flexible bare
electrolytic grade conductor, insulated with specially formulated transparent grade PVC compound.
These speaker cables offer extra flexibility and hence find very easy to pull through the conduit without
damage. The distance between the two conductors is maintained consistently for uniform capacitance
throughout the length. These cables being transparent offer good aesthetic value. These are mainly used
in Connecting speakers, for clear and distortion free voice with very low db loss. These are available in
20, 19, 18, 16 and 14 AWG conductor sizes with 100 mtrs coil packing.
Application:
- used in connecting for audio appliances, home appliances, small electric tolls and instruments.
- Construction:Stranded copper conductor or Tinned Copper, PVC insulated, twin parallel or twisted.
- Rated Voltage:300/300V
- Standard: IEC227
- CE, RoHS, CCC, ISO certificated
- Package:coils with plastic film and wooden pallet.or plastic/wooden reel
- Quick Delivery,OEM available
TECHNICAL DETAILS
| Conductor | Approximate Overall Dimensions (mm) |
| Size AWG | Equivalent Metric Size mm2 | Max. Cond. Resistance ohms/km 200C | Width | Height | Thickness | Web Dims. W x H |
| 20 | 0.50 | 39.00 | 4.45 | 2.00 | 0.6 | 0.5 x 0.4 |
| 19 | 0.75 | 26.00 | 5.45 | 2.50 | 0.6 | 0.5 x 0.4 |
| 18 | 1.0 | 21.4 | 6.05 | 2.80 | 0.7 | 0.5 x 0.4 |
| 16 | 1.5 | 13.5 | 6.25 | 2.90 | 0.7 | 0.5 x 0.4 |
| 14 | 2.0 | 9.00 | 7.00 | 3.30 | 0.75 | 0.5 x 0.4 |
| 13 | 2.5 | 7.98 | 7.4 | 3.44 | 0.75 | 0.5 x 0.4 |
